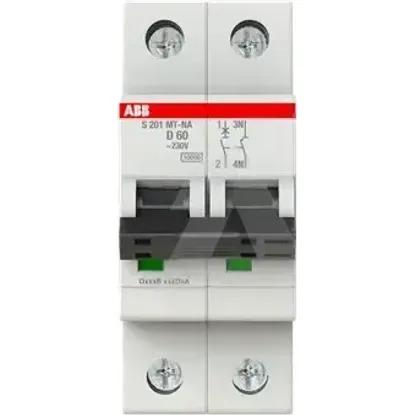

2CDS271446R0601 | S201MT-D60NA
Code: 2002618
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of protected poles1
Voltage typeOther
Release characteristicD
Rated voltage230V
Rated current60A
Built-in depth69mm
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated impulse withstand voltage Uimp4kV
Power loss-W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Number of poles (total)2
Frequency50 - 60Hz
Current limiting class3
Pollution degree3
Concurrently switching neutral conductorYes
Flush-mounted installationNo
Width in number of modular spacings2.0
Ambient temperature during operating-40 - 70°C
Additional equipment possibleYes
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Over voltage category3
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS271446R0601 | S201MT-D60NA
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of protected poles
1
Voltage type
Other
Release characteristic
D
Rated voltage
230V
Rated current
60A
Built-in depth
69mm
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated insulation voltage Ui
440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-kA
Rated impulse withstand voltage Uimp
4kV
Power loss
-W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Number of poles (total)
2
Frequency
50 .. 60Hz
Current limiting class
3
Pollution degree
3
Concurrently switching neutral conductor
Flush-mounted installation
Width in number of modular spacings
2.0
Ambient temperature during operating
-40 .. 70°C
Additional equipment possible
Connectable conductor cross section solid-core
0.75 .. 35mm²
Degree of protection (IP)
IP20
Over voltage category
3
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Explosion-proof
