Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Rated voltage230V
Current limiting class3
Built-in depth69mm
Voltage typeOther
Over voltage category3
Release characteristicK
Pollution degree3
Explosion-proofNo
Power loss11.8W
Width in number of modular spacings2.0
Degree of protection (IP)IP20
Concurrently switching neutral conductorYes
Number of protected poles1
Rated current63A
Additional equipment possibleYes
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Ambient temperature during operating-40 - 70°C
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Connectable conductor cross section solid-core0.75 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

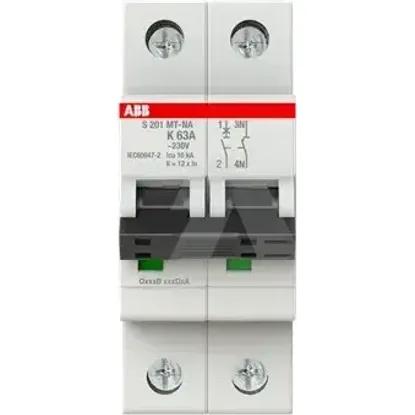

2CDS271446R0607 | S201MT-K63NA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated insulation voltage Ui
440V
Frequency
50 .. 60Hz
Rated voltage
230V
Current limiting class
3
Built-in depth
69mm
Voltage type
Other
Over voltage category
3
Release characteristic
K
Pollution degree
3
Explosion-proof
Power loss
11.8W
Width in number of modular spacings
2.0
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
Number of protected poles
1
Rated current
63A
Additional equipment possible
Number of poles (total)
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Flush-mounted installation
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Ambient temperature during operating
-40 .. 70°C
Rated impulse withstand voltage Uimp
4kV
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Connectable conductor cross section solid-core
0.75 .. 35mm²
