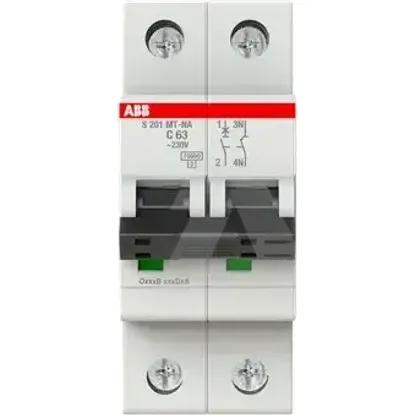

2CDS271446R0634 | S201MT-C63NA
Code: 2002624
ManufacturerABB
Catalog number2CDS271446R0634
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779123655
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeOther
Width in number of modular spacings2
Current limiting class3
Rated voltage230V
Pollution degree3
Over voltage category3
Rated insulation voltage Ui440V
Built-in depth69mm
Frequency50 - 60Hz
Number of protected poles1
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Degree of protection (IP)IP20
Concurrently switching neutral conductorYes
Rated impulse withstand voltage Uimp4kV
Explosion-proofNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Ambient temperature during operating-40 - 70°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Power loss9.6W
Connectable conductor cross section solid-core0.75 - 35mm²
Additional equipment possibleYes
Rated current63A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
