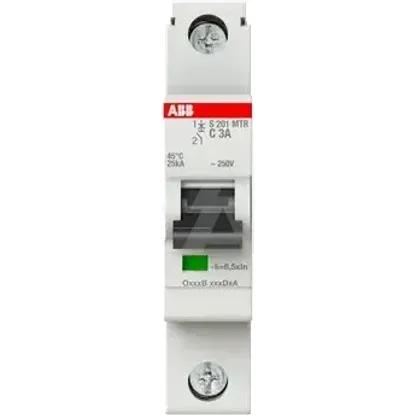

2CDS271447R0034 | S201MTR-C3
Code: 2002632
ManufacturerABB
Catalog number2CDS271447R0034
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779118811
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated voltage253V
Voltage typeOther
Over voltage category3
Number of protected poles1
Connectable conductor cross section solid-core0.75 - 35mm²
Concurrently switching neutral conductorNo
Width in number of modular spacings1
Explosion-proofNo
Power loss1.4W
Rated insulation voltage Ui440V
Connectable conductor cross section multi-wired0.75 - 25mm²
Flush-mounted installationNo
Additional equipment possibleYes
Pollution degree3
Degree of protection (IP)IP20
Ambient temperature during operating-40 - 75°C
Current limiting class3
Frequency50 - 60Hz
Built-in depth69mm
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated current3A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
