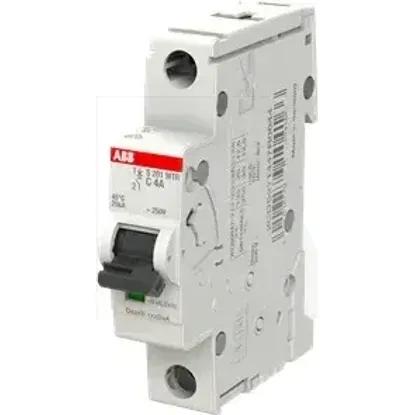

2CDS271447R0044 | S201MTR-C4
Code: 2002633
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Voltage typeOther
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Release characteristicC
Built-in depth69mm
Number of protected poles1
Power loss1.4W
Rated voltage253V
Rated current4A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Number of poles (total)1
Current limiting class3
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Pollution degree3
Connectable conductor cross section multi-wired0.75 - 25mm²
Width in number of modular spacings1.0
Over voltage category3
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Flush-mounted installationNo
Additional equipment possibleYes
Explosion-proofNo
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 75°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS271447R0044 | S201MTR-C4
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated insulation voltage Ui
440V
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Voltage type
Other
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Release characteristic
C
Built-in depth
69mm
Number of protected poles
1
Power loss
1.4W
Rated voltage
253V
Rated current
4A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25kA
Number of poles (total)
1
Current limiting class
3
Frequency
50 .. 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Pollution degree
3
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Width in number of modular spacings
1.0
Over voltage category
3
Concurrently switching neutral conductor
Degree of protection (IP)
IP20
Flush-mounted installation
Additional equipment possible
Explosion-proof
Connectable conductor cross section solid-core
0.75 .. 35mm²
Ambient temperature during operating
-40 .. 75°C
