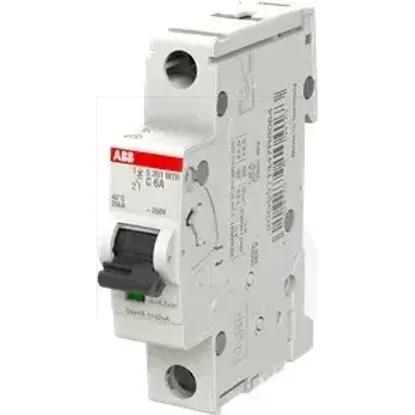

2CDS271447R0064 | S201MTR-C6
Code: 2002634
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicC
Rated insulation voltage Ui440V
Number of poles (total)1
Rated current6A
Number of protected poles1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated voltage253V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Frequency50 - 60Hz
Rated impulse withstand voltage Uimp4kV
Voltage typeOther
Built-in depth69mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Power loss1.7W
Current limiting class3
Connectable conductor cross section solid-core0.75 - 35mm²
Over voltage category3
Explosion-proofNo
Ambient temperature during operating-40 - 75°C
Additional equipment possibleYes
Degree of protection (IP)IP20
Width in number of modular spacings1.0
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Pollution degree3
Flush-mounted installationNo
