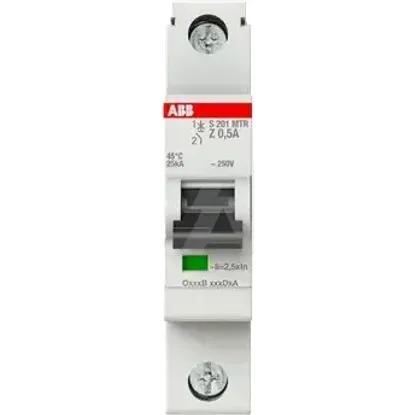

2CDS271447R0158 | S201MTR-Z0,5
Code: 2002642
ManufacturerABB
Catalog number2CDS271447R0158
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779104258
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Over voltage category3
Pollution degree3
Current limiting class3
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Rated voltage253V
Width in number of modular spacings1
Voltage typeOther
Connectable conductor cross section multi-wired0.75 - 25mm²
Number of protected poles1
Additional equipment possibleYes
Flush-mounted installationNo
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 75°C
Concurrently switching neutral conductorNo
Power loss2.4W
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Explosion-proofNo
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Degree of protection (IP)IP20
Rated current0.5A
Release characteristicZ
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
