Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Frequency50 - 60Hz
Rated voltage253V
Rated current16A
Power loss2.2W
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Current limiting class3
Additional equipment possibleYes
Width in number of modular spacings1.0
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section solid-core0.75 - 35mm²
Over voltage category3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Ambient temperature during operating-40 - 75°C
Flush-mounted installationNo
Number of poles (total)1
Number of protected poles1
Degree of protection (IP)IP20
Pollution degree3
Release characteristicC
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

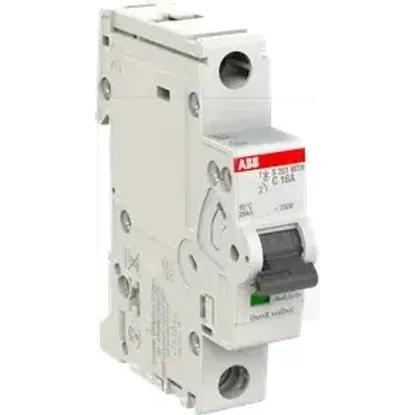

2CDS271447R0164 | S201MTR-C16
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Built-in depth
69mm
Voltage type
Other
Frequency
50 .. 60Hz
Rated voltage
253V
Rated current
16A
Power loss
2.2W
Rated insulation voltage Ui
440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Current limiting class
3
Additional equipment possible
Width in number of modular spacings
1.0
Concurrently switching neutral conductor
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Explosion-proof
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25kA
Rated impulse withstand voltage Uimp
4kV
Connectable conductor cross section solid-core
0.75 .. 35mm²
Over voltage category
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Ambient temperature during operating
-40 .. 75°C
Flush-mounted installation
Number of poles (total)
1
Number of protected poles
1
Degree of protection (IP)
IP20
Pollution degree
3
Release characteristic
C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
