Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Rated current16A
Voltage typeOther
Current limiting class3
Release characteristicB
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Rated voltage253V
Pollution degree3
Width in number of modular spacings1.0
Over voltage category3
Explosion-proofNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Additional equipment possibleYes
Ambient temperature during operating-40 - 75°C
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Number of protected poles1
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Power loss2.2W
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Connectable conductor cross section solid-core0.75 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

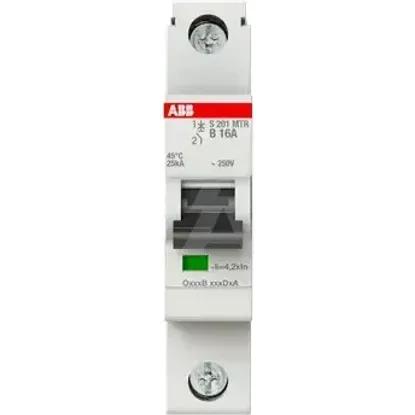

2CDS271447R0165 | S201MTR-B16
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Built-in depth
69mm
Rated current
16A
Voltage type
Other
Current limiting class
3
Release characteristic
B
Frequency
50 .. 60Hz
Rated insulation voltage Ui
440V
Rated voltage
253V
Pollution degree
3
Width in number of modular spacings
1.0
Over voltage category
3
Explosion-proof
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Additional equipment possible
Ambient temperature during operating
-40 .. 75°C
Flush-mounted installation
Concurrently switching neutral conductor
Number of protected poles
1
Degree of protection (IP)
IP20
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Number of poles (total)
1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Power loss
2.2W
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Connectable conductor cross section solid-core
0.75 .. 35mm²
