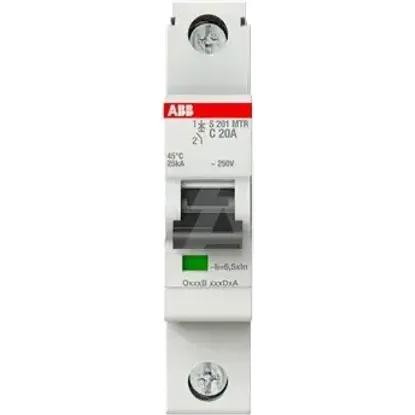

2CDS271447R0204 | S201MTR-C20
Code: 2002645
ManufacturerABB
Catalog number2CDS271447R0204
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779104289
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Explosion-proofNo
Pollution degree3
Over voltage category3
Rated insulation voltage Ui440V
Ambient temperature during operating-40 - 75°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Voltage typeOther
Flush-mounted installationNo
Current limiting class3
Rated voltage253V
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Connectable conductor cross section solid-core0.75 - 35mm²
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Degree of protection (IP)IP20
Built-in depth69mm
Power loss3.1W
Number of protected poles1
Width in number of modular spacings1
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated impulse withstand voltage Uimp4kV
Rated current20A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
