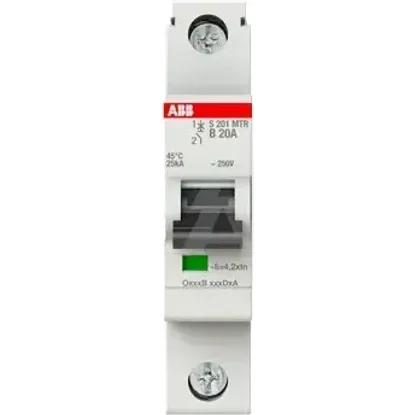

2CDS271447R0205 | S201MTR-B20
Code: 2002646
ManufacturerABB
Catalog number2CDS271447R0205
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779104296
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated voltage253V
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Voltage typeOther
Built-in depth69mm
Over voltage category3
Connectable conductor cross section solid-core0.75 - 35mm²
Concurrently switching neutral conductorNo
Explosion-proofNo
Power loss3W
Pollution degree3
Connectable conductor cross section multi-wired0.75 - 25mm²
Degree of protection (IP)IP20
Additional equipment possibleYes
Current limiting class3
Number of protected poles1
Ambient temperature during operating-40 - 75°C
Width in number of modular spacings1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated impulse withstand voltage Uimp4kV
Rated current20A
Release characteristicB
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
