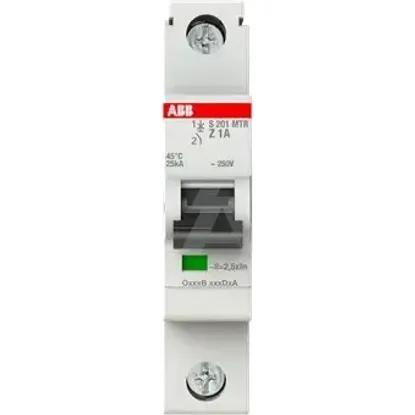

2CDS271447R0218 | S201MTR-Z1
Code: 2002648
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of protected poles1
Rated voltage253V
Built-in depth69mm
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Number of poles (total)1
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Power loss2.5W
Release characteristicZ
Rated insulation voltage Ui440V
Current limiting class3
Rated current1A
Voltage typeOther
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
Flush-mounted installationNo
Connectable conductor cross section solid-core0.75 - 35mm²
Pollution degree3
Additional equipment possibleYes
Explosion-proofNo
Ambient temperature during operating-40 - 75°C
Over voltage category3
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Width in number of modular spacings1.0
Connectable conductor cross section multi-wired0.75 - 25mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS271447R0218 | S201MTR-Z1
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of protected poles
1
Rated voltage
253V
Built-in depth
69mm
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Number of poles (total)
1
Frequency
50 .. 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25kA
Power loss
2.5W
Release characteristic
Z
Rated insulation voltage Ui
440V
Current limiting class
3
Rated current
1A
Voltage type
Other
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated impulse withstand voltage Uimp
4kV
Flush-mounted installation
Connectable conductor cross section solid-core
0.75 .. 35mm²
Pollution degree
3
Additional equipment possible
Explosion-proof
Ambient temperature during operating
-40 .. 75°C
Over voltage category
3
Concurrently switching neutral conductor
Degree of protection (IP)
IP20
Width in number of modular spacings
1.0
Connectable conductor cross section multi-wired
0.75 .. 25mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
