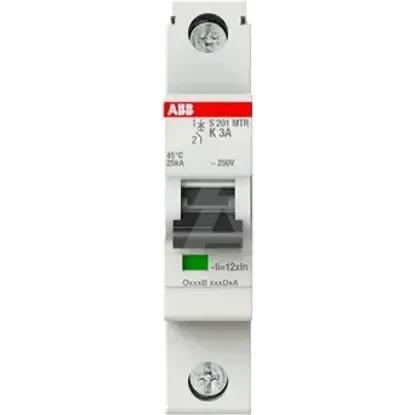

2CDS271447R0317 | S201MTR-K3
Code: 2002655
ManufacturerABB
Catalog number2CDS271447R0317
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779118842
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Current limiting class3
Rated voltage253V
Width in number of modular spacings1
Pollution degree3
Voltage typeOther
Over voltage category3
Built-in depth69mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Degree of protection (IP)IP20
Flush-mounted installationNo
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Ambient temperature during operating-40 - 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Number of protected poles1
Power loss1.2W
Rated current3A
Release characteristicK
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
