Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Explosion-proofNo
Frequency50 - 60Hz
Over voltage category3
Release characteristicZ
Current limiting class3
Power loss2.5W
Rated voltage253V
Rated insulation voltage Ui440V
Ambient temperature during operating-40 - 75°C
Flush-mounted installationNo
Number of protected poles1
Pollution degree3
Width in number of modular spacings1.0
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated current3A
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Number of poles (total)1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

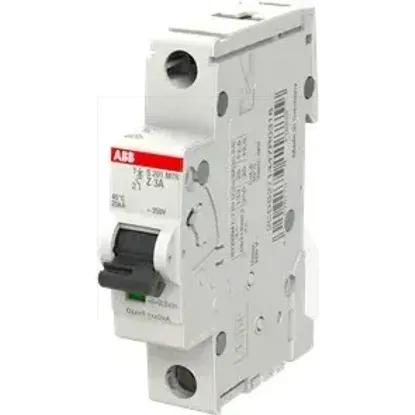

2CDS271447R0318 | S201MTR-Z3
