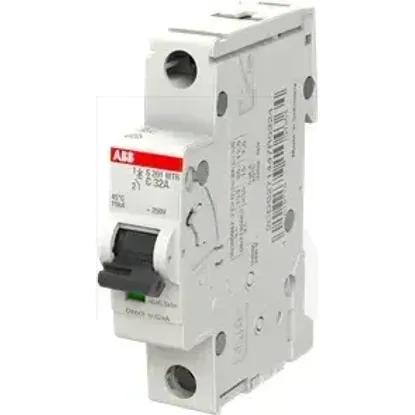

2CDS271447R0324 | S201MTR-C32
Code: 2002657
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicC
Rated current32A
Number of poles (total)1
Rated voltage253V
Built-in depth69mm
Rated impulse withstand voltage Uimp4kV
Number of protected poles1
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Voltage typeOther
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Current limiting class3
Frequency50 - 60Hz
Power loss3.7W
Concurrently switching neutral conductorNo
Over voltage category3
Flush-mounted installationNo
Additional equipment possibleYes
Pollution degree3
Ambient temperature during operating-40 - 75°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
Width in number of modular spacings1.0
