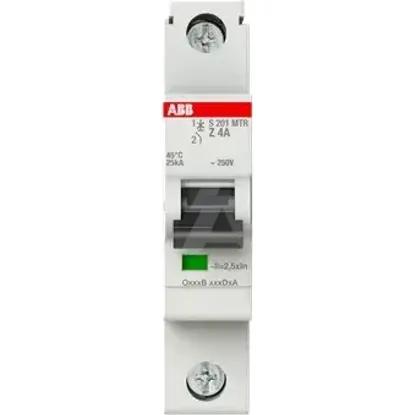

2CDS271447R0338 | S201MTR-Z4
Code: 2002660
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated voltage253V
Number of protected poles1
Built-in depth69mm
Rated impulse withstand voltage Uimp4kV
Voltage typeOther
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Frequency50 - 60Hz
Number of poles (total)1
Power loss2.4W
Release characteristicZ
Rated current4A
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated insulation voltage Ui440V
Current limiting class3
Flush-mounted installationNo
Over voltage category3
Width in number of modular spacings1.0
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Additional equipment possibleYes
Ambient temperature during operating-40 - 75°C
Pollution degree3
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
Connectable conductor cross section solid-core0.75 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS271447R0338 | S201MTR-Z4
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated voltage
253V
Number of protected poles
1
Built-in depth
69mm
Rated impulse withstand voltage Uimp
4kV
Voltage type
Other
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Frequency
50 .. 60Hz
Number of poles (total)
1
Power loss
2.4W
Release characteristic
Z
Rated current
4A
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Rated insulation voltage Ui
440V
Current limiting class
3
Flush-mounted installation
Over voltage category
3
Width in number of modular spacings
1.0
Concurrently switching neutral conductor
Degree of protection (IP)
IP20
Additional equipment possible
Ambient temperature during operating
-40 .. 75°C
Pollution degree
3
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Explosion-proof
Connectable conductor cross section solid-core
0.75 .. 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
