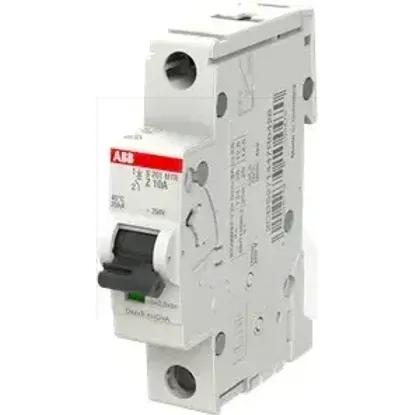

2CDS271447R0428 | S201MTR-Z10
Code: 2002668
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of protected poles1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Voltage typeOther
Rated insulation voltage Ui440V
Power loss2.7W
Rated impulse withstand voltage Uimp4kV
Release characteristicZ
Rated voltage253V
Current limiting class3
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Built-in depth69mm
Rated current10A
Width in number of modular spacings1.0
Flush-mounted installationNo
Degree of protection (IP)IP20
Ambient temperature during operating-40 - 75°C
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Additional equipment possibleYes
Explosion-proofNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Pollution degree3
Over voltage category3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
