Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Frequency50 - 60Hz
Built-in depth69mm
Rated voltage253V
Rated current13A
Voltage typeOther
Over voltage category3
Current limiting class3
Rated insulation voltage Ui440V
Release characteristicK
Number of protected poles1
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 35mm²
Width in number of modular spacings1.0
Concurrently switching neutral conductorNo
Pollution degree3
Additional equipment possibleYes
Ambient temperature during operating-40 - 75°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Flush-mounted installationNo
Explosion-proofNo
Power loss2.1W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

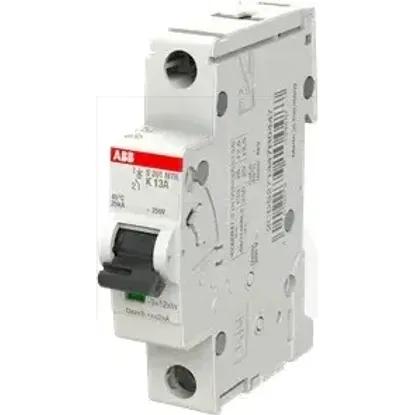

2CDS271447R0447 | S201MTR-K13
