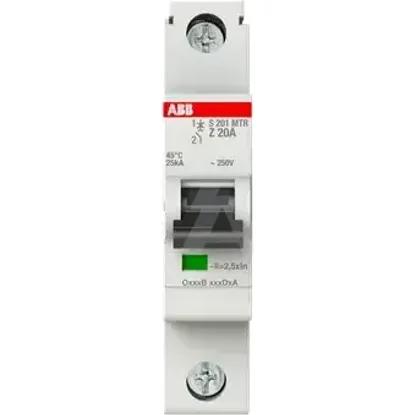

2CDS271447R0488 | S201MTR-Z20
Code: 2002673
ManufacturerABB
Catalog number2CDS271447R0488
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779104524
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated voltage253V
Voltage typeOther
Rated insulation voltage Ui440V
Built-in depth69mm
Frequency50 - 60Hz
Power loss3.4W
Current limiting class3
Explosion-proofNo
Width in number of modular spacings1
Over voltage category3
Pollution degree3
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Degree of protection (IP)IP20
Number of protected poles1
Flush-mounted installationNo
Ambient temperature during operating-40 - 75°C
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated impulse withstand voltage Uimp4kV
Rated current20A
Release characteristicZ
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
