Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Rated current32A
Built-in depth69mm
Rated voltage253V
Release characteristicZ
Width in number of modular spacings1.0
Current limiting class3
Rated insulation voltage Ui440V
Power loss4.1W
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Concurrently switching neutral conductorNo
Pollution degree3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Flush-mounted installationNo
Explosion-proofNo
Frequency50 - 60Hz
Number of poles (total)1
Connectable conductor cross section solid-core0.75 - 35mm²
Over voltage category3
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Ambient temperature during operating-40 - 75°C
Rated impulse withstand voltage Uimp4kV
Number of protected poles1
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 25mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

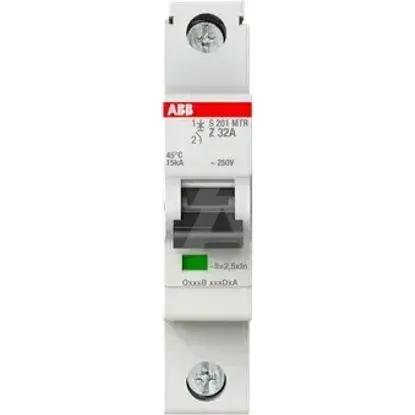

2CDS271447R0538 | S201MTR-Z32
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Voltage type
Other
Rated current
32A
Built-in depth
69mm
Rated voltage
253V
Release characteristic
Z
Width in number of modular spacings
1.0
Current limiting class
3
Rated insulation voltage Ui
440V
Power loss
4.1W
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Concurrently switching neutral conductor
Pollution degree
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Flush-mounted installation
Explosion-proof
Frequency
50 .. 60Hz
Number of poles (total)
1
Connectable conductor cross section solid-core
0.75 .. 35mm²
Over voltage category
3
Additional equipment possible
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Ambient temperature during operating
-40 .. 75°C
Rated impulse withstand voltage Uimp
4kV
Number of protected poles
1
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
0.75 .. 25mm²
