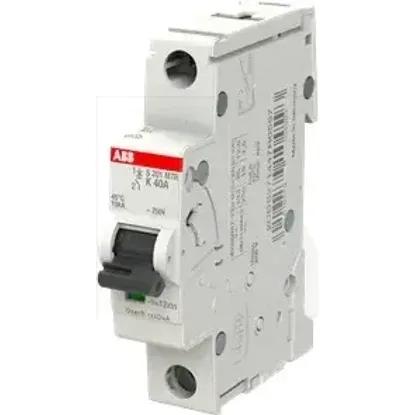

2CDS271447R0557 | S201MTR-K40
Code: 2002680
ManufacturerABB
Catalog number2CDS271447R0557
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779104593
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Rated voltage253V
Voltage typeOther
Current limiting class3
Frequency50 - 60Hz
Over voltage category3
Rated insulation voltage Ui440V
Pollution degree3
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
Number of protected poles1
Connectable conductor cross section multi-wired0.75 - 25mm²
Width in number of modular spacings1
Ambient temperature during operating-40 - 75°C
Degree of protection (IP)IP20
Power loss4.1W
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Flush-mounted installationNo
Additional equipment possibleYes
Rated current40A
Release characteristicK
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
