Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicZ
Rated current40A
Rated voltage253V
Degree of protection (IP)IP20
Width in number of modular spacings1.0
Rated insulation voltage Ui440V
Power loss4.3W
Built-in depth69mm
Over voltage category3
Frequency50 - 60Hz
Explosion-proofNo
Current limiting class3
Voltage typeOther
Pollution degree3
Concurrently switching neutral conductorNo
Number of protected poles1
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 75°C
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Additional equipment possibleYes
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

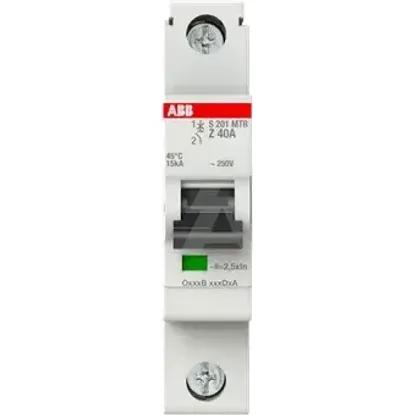

2CDS271447R0558 | S201MTR-Z40
