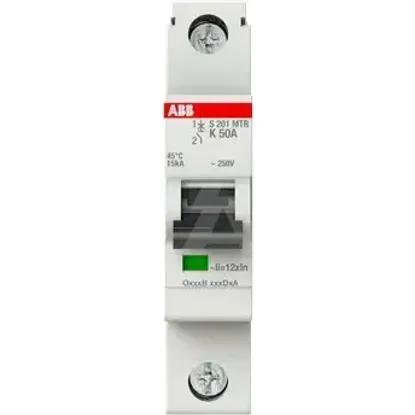

2CDS271447R0577 | S201MTR-K50
Code: 2002682
ManufacturerABB
Catalog number2CDS271447R0577
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779104616
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeOther
Rated voltage253V
Over voltage category3
Width in number of modular spacings1
Built-in depth69mm
Pollution degree3
Rated insulation voltage Ui440V
Current limiting class3
Frequency50 - 60Hz
Number of protected poles1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Explosion-proofNo
Degree of protection (IP)IP20
Flush-mounted installationNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Power loss3.5W
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Additional equipment possibleYes
Ambient temperature during operating-40 - 75°C
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Rated current50A
Release characteristicK
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
