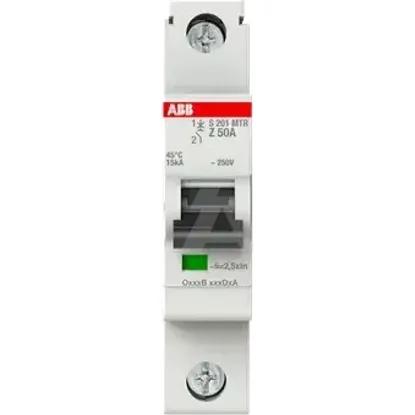

2CDS271447R0578 | S201MTR-Z50
Code: 2002683
ManufacturerABB
Catalog number2CDS271447R0578
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779104623
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Power loss4.4W
Current limiting class3
Width in number of modular spacings1
Rated insulation voltage Ui440V
Voltage typeOther
Rated voltage253V
Pollution degree3
Explosion-proofNo
Built-in depth69mm
Frequency50 - 60Hz
Over voltage category3
Degree of protection (IP)IP20
Number of protected poles1
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated current50A
Release characteristicZ
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
