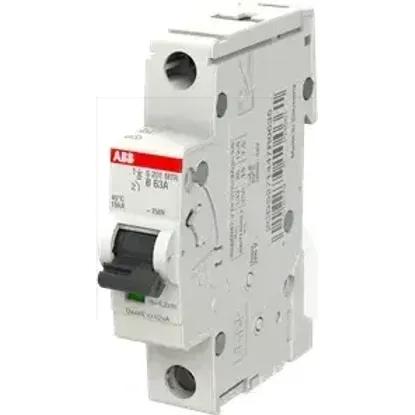

2CDS271447R0635 | S201MTR-B63
Code: 2002687
ManufacturerABB
Catalog number2CDS271447R0635
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779104661
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Rated insulation voltage Ui440V
Explosion-proofNo
Width in number of modular spacings1
Frequency50 - 60Hz
Rated voltage253V
Over voltage category3
Pollution degree3
Power loss5.4W
Current limiting class3
Concurrently switching neutral conductorNo
Number of protected poles1
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 35mm²
Flush-mounted installationNo
Additional equipment possibleYes
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 75°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated current63A
Release characteristicB
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
