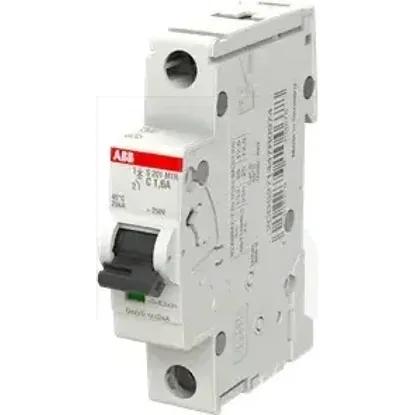

2CDS271447R0974 | S201MTR-C1,6
Code: 2002688
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Number of poles (total)1
Number of protected poles1
Release characteristicC
Rated current1.6A
Rated insulation voltage Ui440V
Rated voltage253V
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Voltage typeOther
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Current limiting class3
Power loss1.4W
Flush-mounted installationNo
Over voltage category3
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Pollution degree3
Width in number of modular spacings1.0
Additional equipment possibleYes
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 75°C
Explosion-proofNo
Connectable conductor cross section solid-core0.75 - 35mm²
