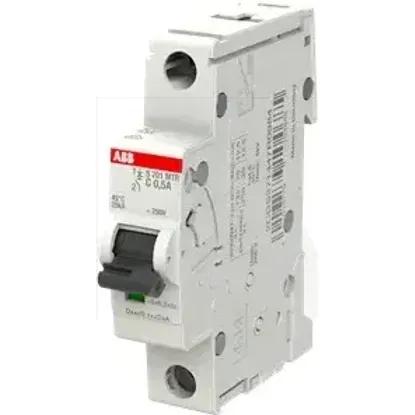

2CDS271447R0984 | S201MTR-C0,5
Code: 2002689
ManufacturerABB
Catalog number2CDS271447R0984
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779104685
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Frequency50 - 60Hz
Built-in depth69mm
Voltage typeOther
Rated voltage253V
Current limiting class3
Rated insulation voltage Ui440V
Pollution degree3
Width in number of modular spacings1
Explosion-proofNo
Over voltage category3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired0.75 - 25mm²
Power loss1.3W
Number of protected poles1
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Concurrently switching neutral conductorNo
Ambient temperature during operating-40 - 75°C
Connectable conductor cross section solid-core0.75 - 35mm²
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated current0.5A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
