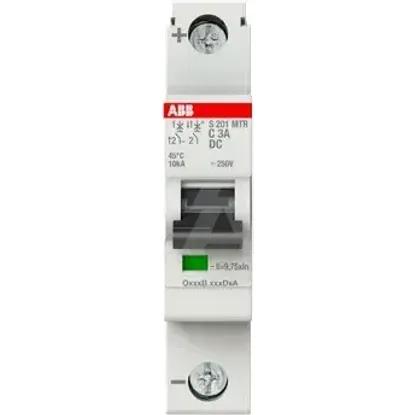

2CDS271565R0034 | S201MTR-C3 DC
Code: 2002692
ManufacturerABB
Catalog number2CDS271565R0034
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779118910
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Rated voltage220V
Frequency50 - 60Hz
Over voltage category3
Pollution degree3
Degree of protection (IP)IP20
Explosion-proofNo
Rated insulation voltage Ui440V
Concurrently switching neutral conductorNo
Width in number of modular spacings1
Number of protected poles1
Current limiting class3
Power loss1.4W
Ambient temperature during operating-40 - 75°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Additional equipment possibleYes
Flush-mounted installationNo
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated current3A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
