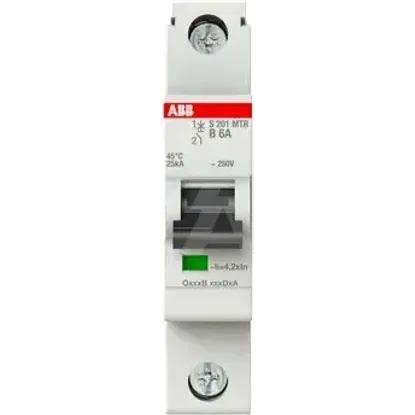

2CDS271565R0065 | S201MTR-B6 DC
Code: 2002695
ManufacturerABB
Catalog number2CDS271565R0065
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779100830
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Degree of protection (IP)IP20
Frequency50 - 60Hz
Power loss1.9W
Rated voltage220V
Built-in depth69mm
Voltage typeOther
Current limiting class3
Explosion-proofNo
Rated insulation voltage Ui440V
Number of protected poles1
Pollution degree3
Width in number of modular spacings1
Over voltage category3
Ambient temperature during operating-40 - 75°C
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Rated current6A
Release characteristicB
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
