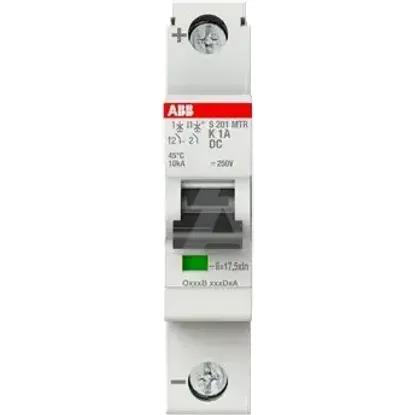

2CDS271565R0217 | S201MTR-K1 DC
Code: 2002707
ManufacturerABB
Catalog number2CDS271565R0217
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779121194
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Pollution degree3
Number of protected poles1
Power loss1.3W
Voltage typeOther
Frequency50 - 60Hz
Rated voltage220V
Degree of protection (IP)IP20
Rated insulation voltage Ui440V
Built-in depth69mm
Over voltage category3
Explosion-proofNo
Width in number of modular spacings1
Current limiting class3
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired0.75 - 25mm²
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Ambient temperature during operating-40 - 75°C
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Additional equipment possibleYes
Rated current1A
Release characteristicK
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
