Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Frequency50 - 60Hz
Voltage typeOther
Rated voltage220V
Degree of protection (IP)IP20
Rated current1A
Current limiting class3
Pollution degree3
Power loss2.5W
Concurrently switching neutral conductorNo
Width in number of modular spacings1.0
Over voltage category3
Number of protected poles1
Release characteristicZ
Rated insulation voltage Ui440V
Built-in depth69mm
Explosion-proofNo
Connectable conductor cross section solid-core0.75 - 35mm²
Flush-mounted installationNo
Additional equipment possibleYes
Number of poles (total)1
Ambient temperature during operating-40 - 75°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

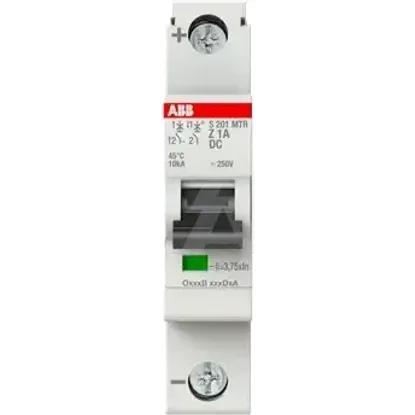

2CDS271565R0218 | S201MTR-Z1 DC
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Frequency
50 .. 60Hz
Voltage type
Other
Rated voltage
220V
Degree of protection (IP)
IP20
Rated current
1A
Current limiting class
3
Pollution degree
3
Power loss
2.5W
Concurrently switching neutral conductor
Width in number of modular spacings
1.0
Over voltage category
3
Number of protected poles
1
Release characteristic
Z
Rated insulation voltage Ui
440V
Built-in depth
69mm
Explosion-proof
Connectable conductor cross section solid-core
0.75 .. 35mm²
Flush-mounted installation
Additional equipment possible
Number of poles (total)
1
Ambient temperature during operating
-40 .. 75°C
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
