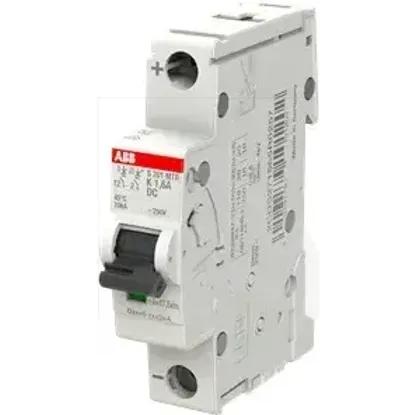

2CDS271565R0257 | S201MTR-K1,6 DC
Code: 2002711
ManufacturerABB
Catalog number2CDS271565R0257
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779136358
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeOther
Rated insulation voltage Ui440V
Current limiting class3
Frequency50 - 60Hz
Rated voltage220V
Built-in depth69mm
Explosion-proofNo
Pollution degree3
Width in number of modular spacings1
Number of protected poles1
Flush-mounted installationNo
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 25mm²
Concurrently switching neutral conductorNo
Power loss1.3W
Ambient temperature during operating-40 - 75°C
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Over voltage category3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated current1.6A
Release characteristicK
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
