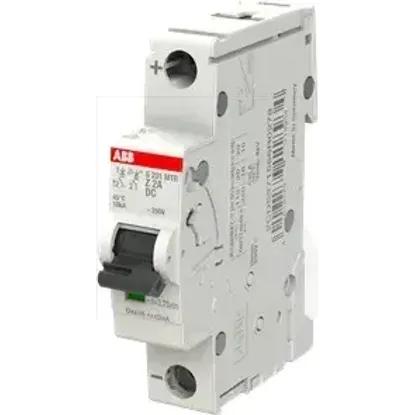

2CDS271565R0278 | S201MTR-Z2 DC
Code: 2002714
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicZ
Built-in depth69mm
Number of protected poles1
Number of poles (total)1
Voltage typeOther
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated current2A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Frequency50 - 60Hz
Power loss2.4W
Rated insulation voltage Ui440V
Rated voltage220V
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Over voltage category3
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 75°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Degree of protection (IP)IP20
Flush-mounted installationNo
Explosion-proofNo
Additional equipment possibleYes
Width in number of modular spacings1.0
Pollution degree3
