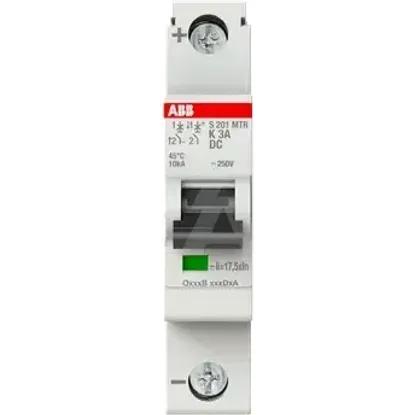

2CDS271565R0317 | S201MTR-K3 DC
Code: 2002715
ManufacturerABB
Catalog number2CDS271565R0317
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779118941
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Pollution degree3
Width in number of modular spacings1
Voltage typeOther
Rated voltage220V
Frequency50 - 60Hz
Current limiting class3
Over voltage category3
Rated insulation voltage Ui440V
Built-in depth69mm
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Degree of protection (IP)IP20
Explosion-proofNo
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Ambient temperature during operating-40 - 75°C
Power loss1.2W
Additional equipment possibleYes
Number of protected poles1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated current3A
Release characteristicK
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
