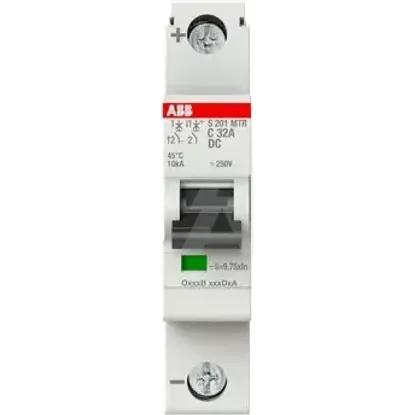

2CDS271565R0324 | S201MTR-C32 DC
Code: 2002717
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current32A
Built-in depth69mm
Number of poles (total)1
Release characteristicC
Number of protected poles1
Rated impulse withstand voltage Uimp4kV
Rated voltage220V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated insulation voltage Ui440V
Voltage typeOther
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Power loss3.7W
Frequency50 - 60Hz
Current limiting class3
Concurrently switching neutral conductorNo
Over voltage category3
Flush-mounted installationNo
Additional equipment possibleYes
Degree of protection (IP)IP20
Width in number of modular spacings1.0
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 75°C
Explosion-proofNo
Pollution degree3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
