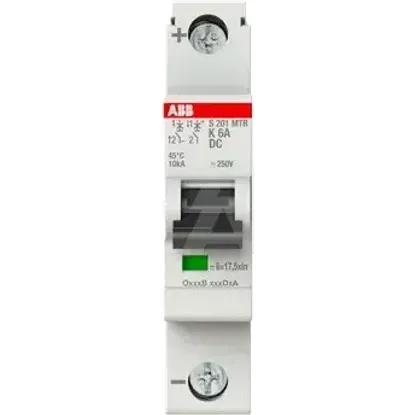

2CDS271565R0377 | S201MTR-K6 DC
Code: 2002721
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of poles (total)1
Built-in depth69mm
Release characteristicK
Rated insulation voltage Ui440V
Rated current6A
Rated voltage220V
Number of protected poles1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Voltage typeOther
Current limiting class3
Frequency50 - 60Hz
Power loss1.6W
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Degree of protection (IP)IP20
Explosion-proofNo
Ambient temperature during operating-40 - 75°C
Pollution degree3
Width in number of modular spacings1.0
Over voltage category3
Connectable conductor cross section solid-core0.75 - 35mm²
Additional equipment possibleYes
