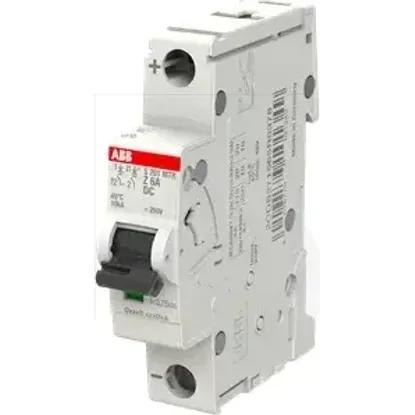

2CDS271565R0378 | S201MTR-Z6 DC
Code: 2002722
ManufacturerABB
Catalog number2CDS271565R0378
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779121439
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Number of protected poles1
Current limiting class3
Rated voltage220V
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Power loss2.6W
Width in number of modular spacings1
Frequency50 - 60Hz
Explosion-proofNo
Rated insulation voltage Ui440V
Over voltage category3
Pollution degree3
Flush-mounted installationNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 75°C
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Rated current6A
Release characteristicZ
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
