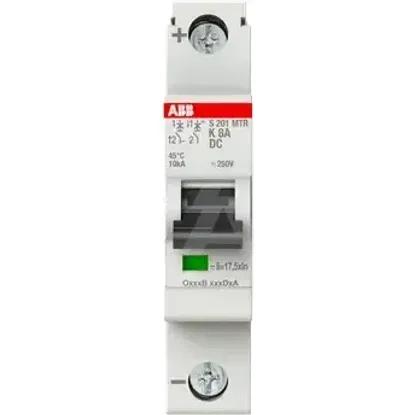

2CDS271565R0407 | S201MTR-K8 DC
Code: 2002725
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicK
Number of protected poles1
Rated voltage220V
Rated current8A
Built-in depth69mm
Rated insulation voltage Ui440V
Number of poles (total)1
Rated impulse withstand voltage Uimp4kV
Voltage typeOther
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Power loss1.2W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Frequency50 - 60Hz
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Flush-mounted installationNo
Pollution degree3
Concurrently switching neutral conductorNo
Width in number of modular spacings1.0
Over voltage category3
Degree of protection (IP)IP20
Additional equipment possibleYes
Ambient temperature during operating-40 - 75°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
