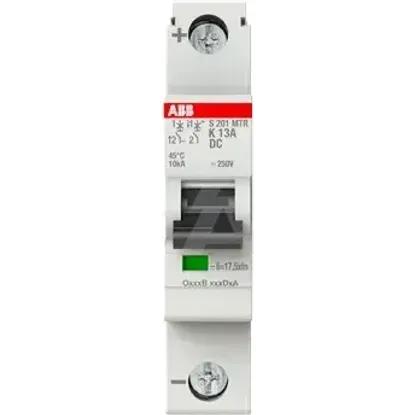

2CDS271565R0447 | S201MTR-K13 DC
Code: 2002729
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of protected poles1
Built-in depth69mm
Release characteristicK
Number of poles (total)1
Rated voltage220V
Voltage typeOther
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated current13A
Frequency50 - 60Hz
Power loss2.1W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Rated insulation voltage Ui440V
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Explosion-proofNo
Width in number of modular spacings1.0
Additional equipment possibleYes
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 75°C
Flush-mounted installationNo
Pollution degree3
Over voltage category3
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS271565R0447 | S201MTR-K13 DC
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of protected poles
1
Built-in depth
69mm
Release characteristic
K
Number of poles (total)
1
Rated voltage
220V
Voltage type
Other
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated current
13A
Frequency
50 .. 60Hz
Power loss
2.1W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
Rated impulse withstand voltage Uimp
4kV
Rated insulation voltage Ui
440V
Current limiting class
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Explosion-proof
Width in number of modular spacings
1.0
Additional equipment possible
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Connectable conductor cross section solid-core
0.75 .. 35mm²
Ambient temperature during operating
-40 .. 75°C
Flush-mounted installation
Pollution degree
3
Over voltage category
3
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
