Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Number of poles (total)1
Release characteristicK
Rated voltage220V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated current16A
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Power loss2W
Voltage typeOther
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Number of protected poles1
Flush-mounted installationNo
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 75°C
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
Width in number of modular spacings1.0
Over voltage category3
Additional equipment possibleYes
Degree of protection (IP)IP20
Pollution degree3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

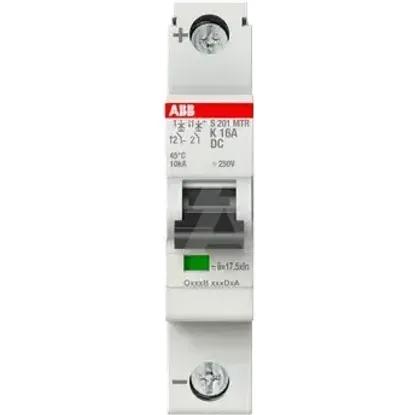

2CDS271565R0467 | S201MTR-K16 DC
