Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Rated voltage220V
Built-in depth69mm
Current limiting class3
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Connectable conductor cross section solid-core0.75 - 35mm²
Flush-mounted installationNo
Ambient temperature during operating-40 - 75°C
Concurrently switching neutral conductorNo
Over voltage category3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Degree of protection (IP)IP20
Pollution degree3
Width in number of modular spacings1.0
Power loss3.5W
Number of protected poles1
Additional equipment possibleYes
Rated current50A
Release characteristicB
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

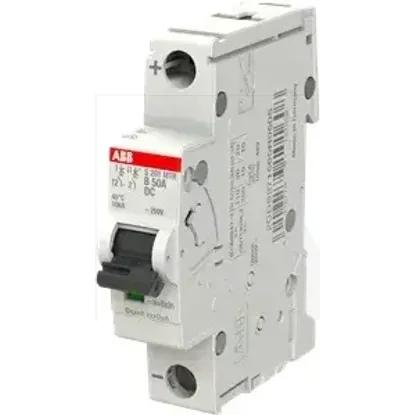

2CDS271565R0505 | S201MTR-B50 DC
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Voltage type
Other
Rated voltage
220V
Built-in depth
69mm
Current limiting class
3
Rated insulation voltage Ui
440V
Frequency
50 .. 60Hz
Connectable conductor cross section solid-core
0.75 .. 35mm²
Flush-mounted installation
Ambient temperature during operating
-40 .. 75°C
Concurrently switching neutral conductor
Over voltage category
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Explosion-proof
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
Degree of protection (IP)
IP20
Pollution degree
3
Width in number of modular spacings
1.0
Power loss
3.5W
Number of protected poles
1
Additional equipment possible
Rated current
50A
Release characteristic
B
Number of poles (total)
1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
