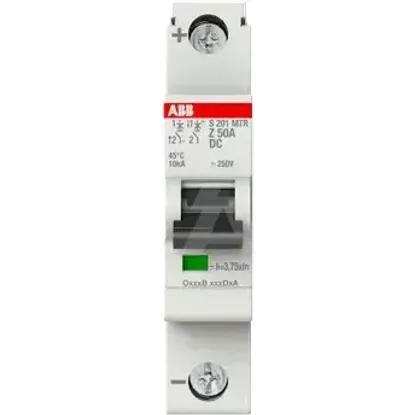

2CDS271565R0578 | S201MTR-Z50 DC
Code: 2002743
ManufacturerABB
Catalog number2CDS271565R0578
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779136242
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Explosion-proofNo
Pollution degree3
Current limiting class3
Voltage typeOther
Rated insulation voltage Ui440V
Number of protected poles1
Frequency50 - 60Hz
Width in number of modular spacings1
Rated voltage220V
Power loss4.4W
Built-in depth69mm
Over voltage category3
Flush-mounted installationNo
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 75°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
Rated current50A
Release characteristicZ
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
