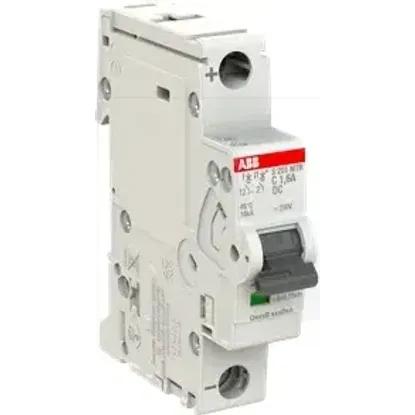

2CDS271565R0974 | S201MTR-C1,6 DC
Code: 2002748
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of protected poles1
Release characteristicC
Number of poles (total)1
Built-in depth69mm
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
Frequency50 - 60Hz
Rated voltage220V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Voltage typeOther
Rated current1.6A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Power loss1.4W
Concurrently switching neutral conductorNo
Pollution degree3
Over voltage category3
Degree of protection (IP)IP20
Additional equipment possibleYes
Ambient temperature during operating-40 - 75°C
Width in number of modular spacings1.0
Explosion-proofNo
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Flush-mounted installationNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS271565R0974 | S201MTR-C1,6 DC
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of protected poles
1
Release characteristic
C
Number of poles (total)
1
Built-in depth
69mm
Rated insulation voltage Ui
440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated impulse withstand voltage Uimp
4kV
Frequency
50 .. 60Hz
Rated voltage
220V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Voltage type
Other
Rated current
1.6A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Current limiting class
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
Power loss
1.4W
Concurrently switching neutral conductor
Pollution degree
3
Over voltage category
3
Degree of protection (IP)
IP20
Additional equipment possible
Ambient temperature during operating
-40 .. 75°C
Width in number of modular spacings
1.0
Explosion-proof
Connectable conductor cross section solid-core
0.75 .. 35mm²
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Flush-mounted installation
