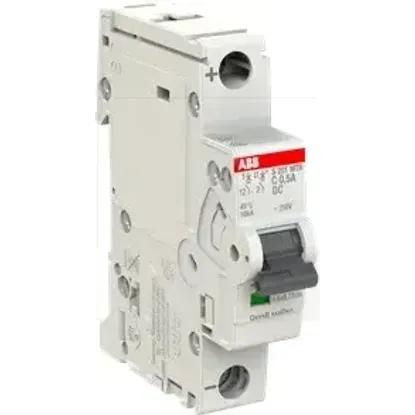

2CDS271565R0984 | S201MTR-C0,5 DC
Code: 2002749
ManufacturerABB
Catalog number2CDS271565R0984
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779136754
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Over voltage category3
Current limiting class3
Frequency50 - 60Hz
Rated voltage220V
Rated insulation voltage Ui440V
Degree of protection (IP)IP20
Number of protected poles1
Power loss1.3W
Pollution degree3
Explosion-proofNo
Width in number of modular spacings1
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Flush-mounted installationNo
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Ambient temperature during operating-40 - 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Additional equipment possibleYes
Connectable conductor cross section solid-core0.75 - 35mm²
Rated current0.5A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
