Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Pollution degree3
Release characteristicK
Rated current25A
Current limiting class3
Number of protected poles2
Concurrently switching neutral conductorNo
Width in number of modular spacings2.0
Degree of protection (IP)IP20
Additional equipment possibleYes
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-25 - 55°C
Power loss5.62W
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
Rated voltage440V
Flush-mounted installationNo
Over voltage category3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

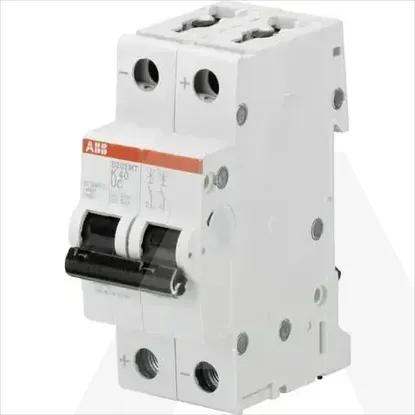

2CDS272065R0517 | S202MT-K25UC
