Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated insulation voltage Ui440V
Release characteristicC
Rated voltage-V
Connectable conductor cross section solid-core35 - 35mm²
Concurrently switching neutral conductorNo
Explosion-proofNo
Current limiting class3
Power loss-W
Connectable conductor cross section multi-wired25 - 25mm²
Pollution degree3
Built-in depth69mm
Voltage typeOther
Number of protected poles2
Over voltage category3
Degree of protection (IP)IP20
Width in number of modular spacings2.0
Rated current6A
Frequency50 - 60Hz
Flush-mounted installationNo
Ambient temperature during operating-25 - 55°C
Additional equipment possibleYes
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

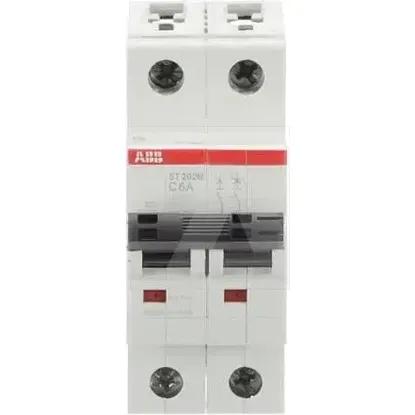

2CDS272334R0064 | ST202M-C6
