Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Rated current20A
Built-in depth69mm
Rated voltage-V
Current limiting class3
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Pollution degree3
Concurrently switching neutral conductorNo
Power loss-W
Over voltage category3
Number of protected poles2
Connectable conductor cross section solid-core35 - 35mm²
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Width in number of modular spacings2.0
Ambient temperature during operating-25 - 55°C
Degree of protection (IP)IP20
Release characteristicC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Connectable conductor cross section multi-wired25 - 25mm²
Flush-mounted installationNo
Number of poles (total)2
Explosion-proofNo
Rated insulation voltage Ui440V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

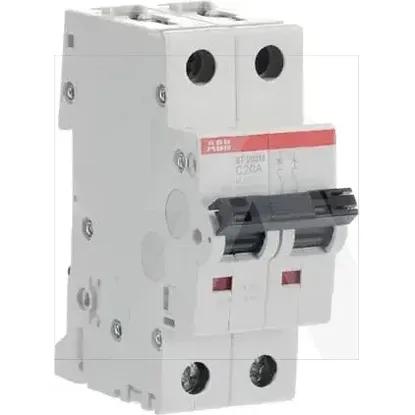

2CDS272334R0204 | ST202M-C20
