Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicC
Rated voltage440V
Frequency50 - 60Hz
Rated current1A
Built-in depth69mm
Voltage typeAC/DC
Width in number of modular spacings2
Current limiting class3
Rated insulation voltage Ui440V
Over voltage category3
Pollution degree3
Degree of protection (IP)IP20
Number of protected poles2
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0 - 35mm²
Ambient temperature during operating-25 - 55°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V11.2kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Connectable conductor cross section multi-wired0 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Additional equipment possibleYes
Number of poles (total)2
Rated impulse withstand voltage Uimp4kV
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

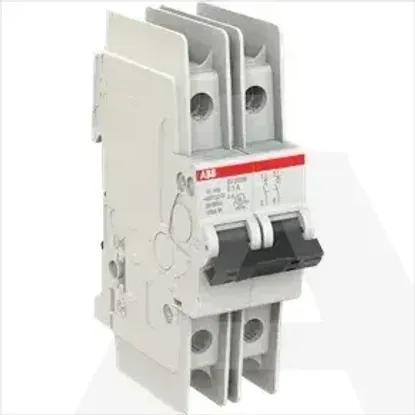

2CDS272337R0014 | SU202M-C1
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Release characteristic
C
Rated voltage
440V
Frequency
50 .. 60Hz
Rated current
1A
Built-in depth
69mm
Voltage type
AC/DC
Width in number of modular spacings
2
Current limiting class
3
Rated insulation voltage Ui
440V
Over voltage category
3
Pollution degree
3
Degree of protection (IP)
IP20
Number of protected poles
2
Concurrently switching neutral conductor
Connectable conductor cross section solid-core
0 .. 35mm²
Ambient temperature during operating
-25 .. 55°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
11.2kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-kA
Connectable conductor cross section multi-wired
0 .. 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Additional equipment possible
Number of poles (total)
2
Rated impulse withstand voltage Uimp
4kV
Suitable for flush-mounted installation
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
