Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Frequency50 - 60Hz
Rated current3A
Built-in depth69mm
Rated voltage440V
Voltage typeAC/DC
Release characteristicC
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Over voltage category3
Width in number of modular spacings2
Current limiting class3
Pollution degree3
Number of protected poles2
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section multi-wired0 - 25mm²
Connectable conductor cross section solid-core0 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V11.2kA
Additional equipment possibleYes
Number of poles (total)2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

2CDS272337R0034 | SU202M-C3

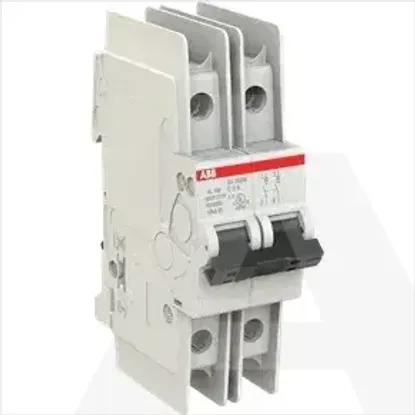

Main Product Image
