Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Number of poles (total)2
Rated voltage440V
Suitable for flush-mounted installationNo
Over voltage category3
Rated current15A
Number of protected poles2
Pollution degree3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Frequency50 - 60Hz
Concurrently switching neutral conductorNo
Current limiting class3
Width in number of modular spacings2
Ambient temperature during operating-25 - 55°C
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V11.2kA
Built-in depth69mm
Connectable conductor cross section multi-wired0 - 25mm²
Release characteristicC
Voltage typeAC/DC
Rated insulation voltage Ui440V
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

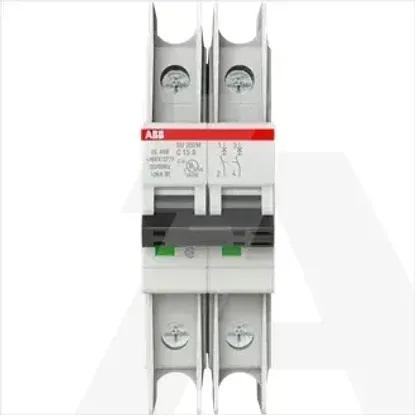

2CDS272337R0154 | SU202M-C15
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-kA
Number of poles (total)
2
Rated voltage
440V
Suitable for flush-mounted installation
Over voltage category
3
Rated current
15A
Number of protected poles
2
Pollution degree
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Frequency
50 .. 60Hz
Concurrently switching neutral conductor
Current limiting class
3
Width in number of modular spacings
2
Ambient temperature during operating
-25 .. 55°C
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
0 .. 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
11.2kA
Built-in depth
69mm
Connectable conductor cross section multi-wired
0 .. 25mm²
Release characteristic
C
Voltage type
AC/DC
Rated insulation voltage Ui
440V
Additional equipment possible
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
